High Strength C17200 Beryllium Plate 140 X 140 X 1800mm For Switch Parts

  • 1
  • 2
  • 3

Brand Name : OHMALLOY

Model Number : C17200

Certification : ISO 9001

Place of Origin : CHINA

MOQ : 10KGS

Price : 26.8USD/KG

Payment Terms : T/T

Supply Ability : 10TONS PER WEEK

Delivery Time : 7-10days

Packaging Details : Wooden Case

Application : Electrical Switch

Material : Copper/Copper Alloy

Shape : Round Bar/Square Bar

Chemical composition : Be 1.8-2.0%; Co+Ni>=0.2%; Cu Bal

Type : C17200

Contact Now

High Strength 140x140x1800mm C17200 Beryllium Plate for Switch Parts

Product Description
Alloy 25 is a high performance copper beryllium alloy used in applications requiring strength, fatigue resistance, non magnetic properties, conductivity, and corrosion resistance. Alloy 25, supplied with certified mechanical properties, is fully heat treated and no additional treatment is required. Alloy 25 magnetic properties are unaffected by machining and surface abrasion.

Mechanical Properties
Alloy 25 AT Alloy 25 HT
UTS, MPa 1130-1380 1200-1520
0.2% PS, MPa 890-1210 1030-1380
Elongation, % in 4D 3-10 2-9
Hardness, HRC 36-41 37-45
Fatigue strength at 10⁸ , MPa 340-450 340-450
Elastic modulus, GPa 131 131
Thermal conductivity, W/m ºC 105 105
Thermal expansion, ppm/ºC 17 17
Magnetic permeability <1.001 <1.001
Density, g/cm³ 8.36 8.36

Chemical Composition Standard
Be Co+Ni Cu Pb Si Fe Al
1.8-2.0 ≥0.2 Bal - 0.15 0.15 0.15 ASTM

Phisical Property of C17200
Status Tensile Strength/MPa Yield Strength/MPa Elongation/% Hardness/B/C Hardness/HV

Electrical

Conductivity/%IACS
A(TB00) 420-550 210-390 30-60 B45-78 ≤140 15-19
1/4H(TD01) 520-620 420-570 20-45 B68-90 120-220 15-19
1/2H(TD02) 590-710 520-670 12-30 B88-96 140-240 15-19
H(TD04) 700-850 630-810 2-18 B96-102 ≥170 15-19
AT(TF00) 1160-1380 980-1240 3-15 C36-42 ≥320 22-28
1/4HT(TH01) 1230-1450 1050-1310 3-10 C36-43 320-420 22-28
1/2HT(TH02) 1300-1520 1120-1380 1-8 C38-44 340-440 22-28
HT(TH04) 1330-1550 1160-1450 1-6 C38-45 ≥360 22-28

Typical Users for C17200 Beryllium Copper:

Electrical Fasteners Industrial Ordinance Other

Electrical Switch

/Relay Blades

Fuse Clips

Switch Parts

Relay Parts

Connectors

Spring Connectors

Current Carrying

Contact Bridges

Belleville Washers

Navigational Instruments

Clips

Washers

Fasteners

Lock Washers

Retaining Rings

Roll Pins

Screws

Bolts

Pumps

Springs

Electrochemical

Shafts

Non Sparking Safety Tools

Fexible Metal Hose

Housing for Instruments

Bearings

Bushings

Valve Seats

Valve Stems

Diaphragms

Springs

Welding Equipment

Rolling Mill Parts

Spline Shafts

Pump Parts

Valves

Bourdon Tubes

Wear Plates on Heavy Equipment

Bellows

Firing Pins

 Tools

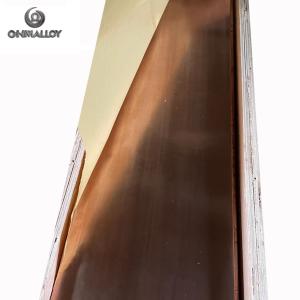

High Strength C17200 Beryllium Plate 140 X 140 X 1800mm For Switch Parts

High Strength C17200 Beryllium Plate 140 X 140 X 1800mm For Switch Parts
